Rotisserie skewer Kit Universal Replacement Device for Rotating skewers Tabletop Auto Flip Kebab Barbecue Grill

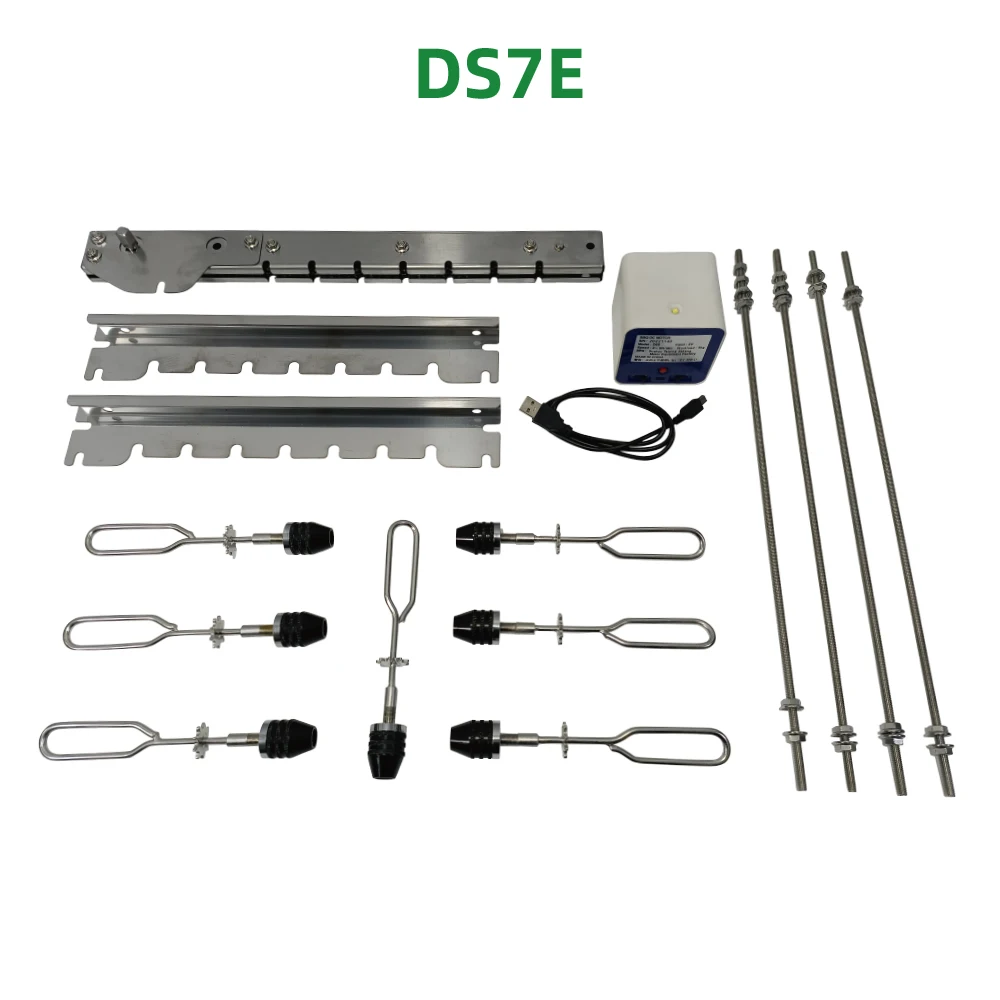

Includes

• 2×Skewer support frame(stainless steel)
• 1×Main engine DS7(stainless steel)
• Skewers
• 1×Multi-Function DC motor
• 4×Guide rods
• 1×Carry bag

Dimension

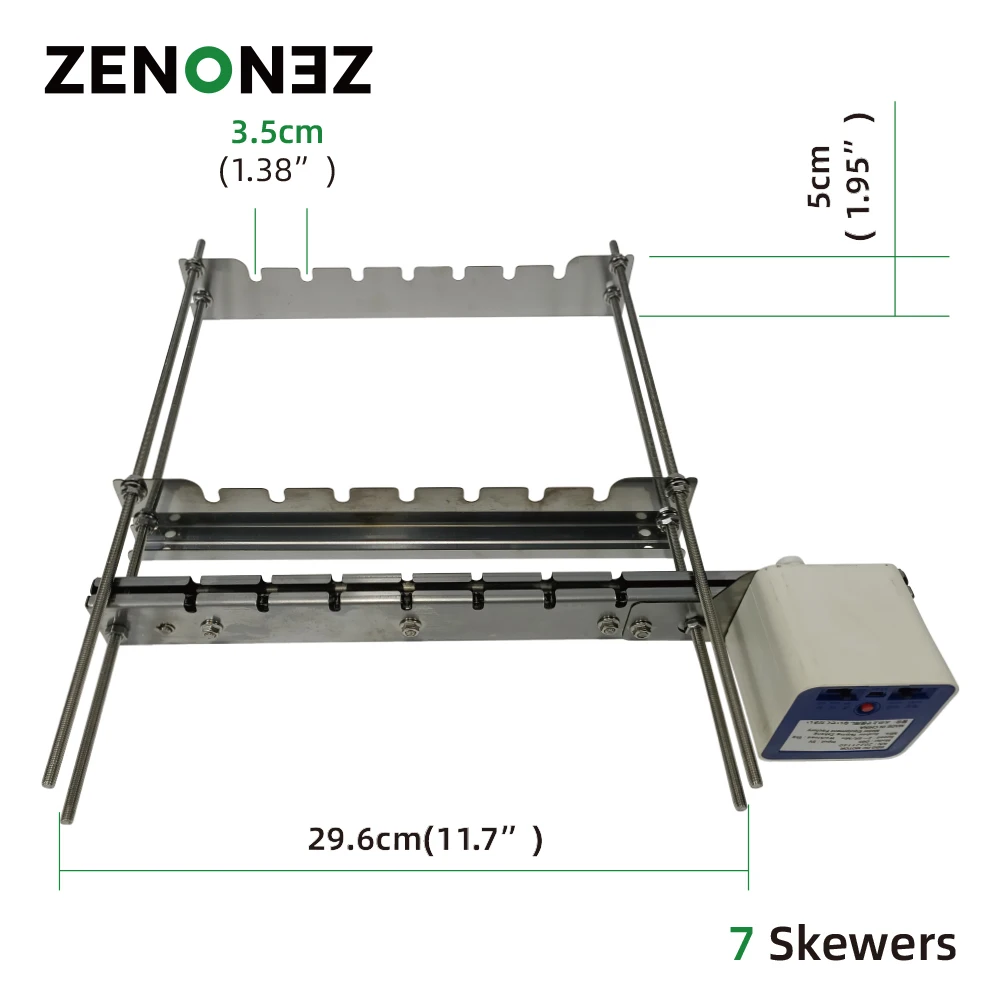

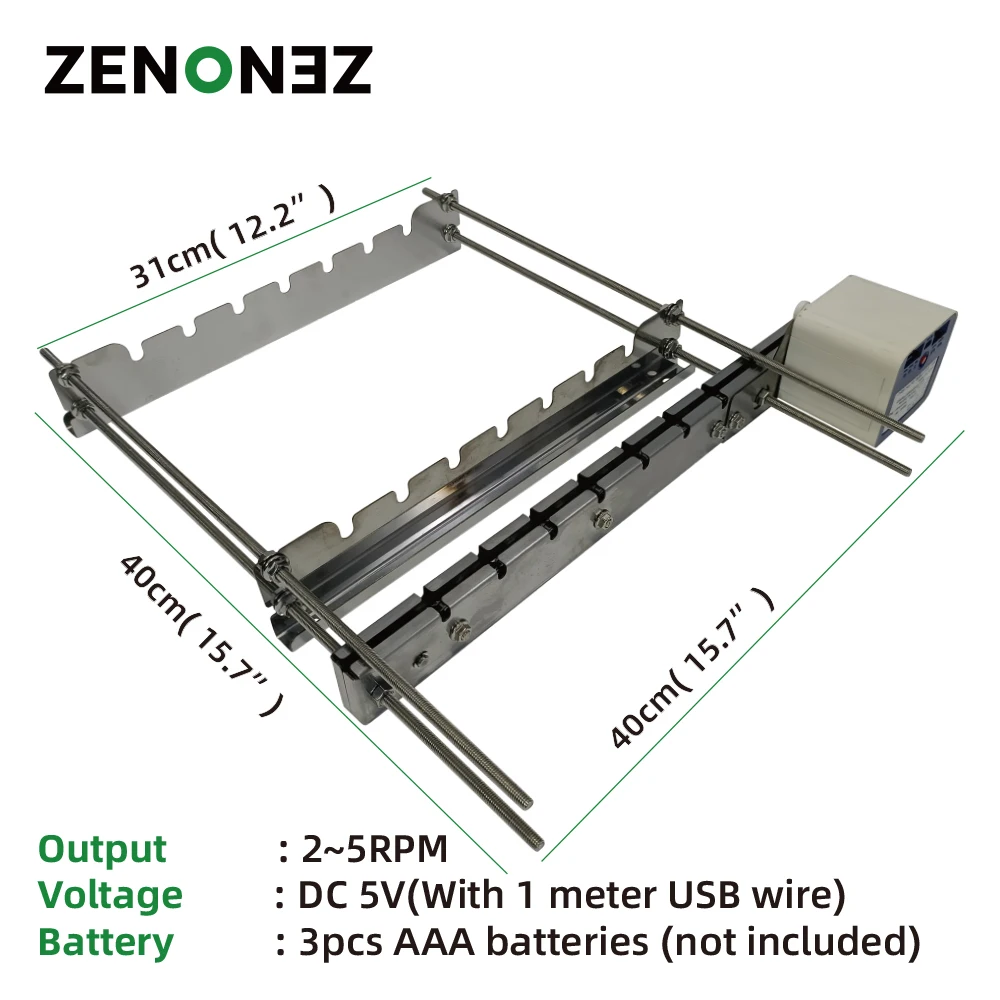

The Main engine DS7 is 40cm(15.75”) long and 4cm(1.57”) high, the Skewer support frame is 31cm(12.2”) long and 5cm(1.97”) high, and the Guide rod is 40cm(15.75”) long, the width of the Skewer support frame as well as the Main engine can be freely adjusted between each other, which can be used to adapt to different scenarios of the ovens(BBQ stoves).

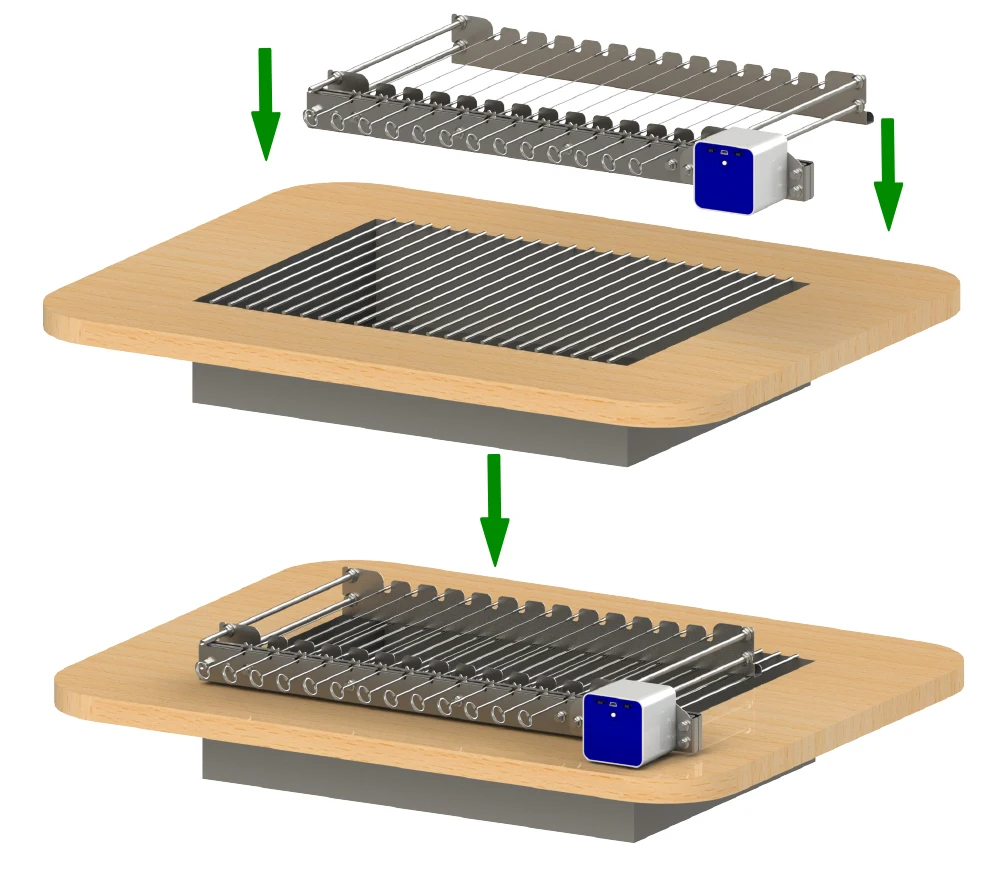

It can be used directly on the ovens(BBQ stoves) or on the grill table, or in your ovens(BBQ stoves), usually not limited by the ovens(BBQ stoves), if your ovens(BBQ stoves) is narrower, you can use the Skewer support frame to clamp your ovens(BBQ stoves).

If you are not sure whether your oven (BBQ stove) is suitable, you can provide a picture of your oven (BBQ stove) outer diameters to the customer service online.

Multi-Function DC Motor

• Output : 2~5RPM
• Voltage: DC 5V(With 1 meter USB wire)

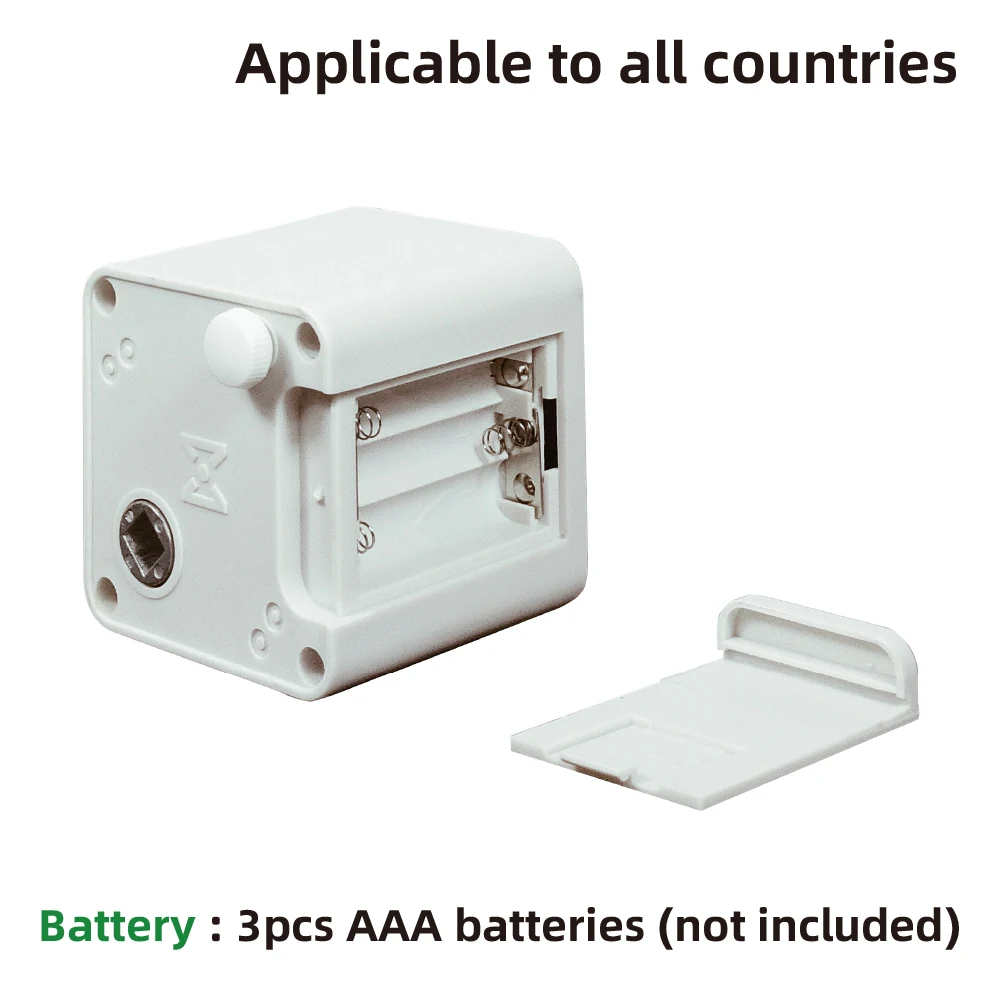

• Battery: 3pcs AAA batteries (not included, DON’T USE rechargeable battery)
• Rotator Port : 0~5.0kgf.cm(0~11 lbs)
• Roast Branch Size: 8 * 8mm / 0.32 * 0.32in

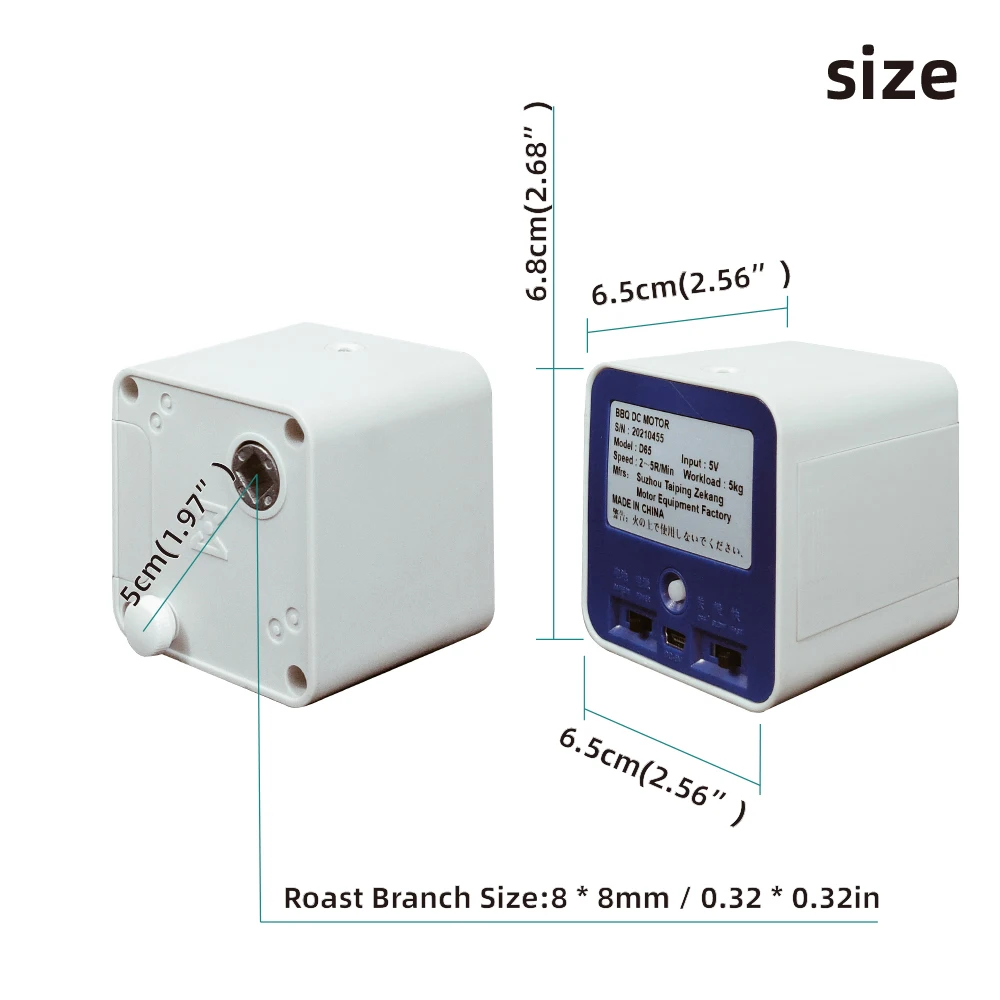

• Motor Size: 6.8 * 6.5 *6.5cm / 2.7 * 2.6* 2.6in
• The motor does not have a battery, Can not be charged.

Step2
Install the nut on the other end of the Guide rod, leave a little gap between the two nuts;
Insert the Guide rods one by one into the slots of another Skewer support frame, do not tighten the nuts, and screw one nut into each of the lower two Guide rods.

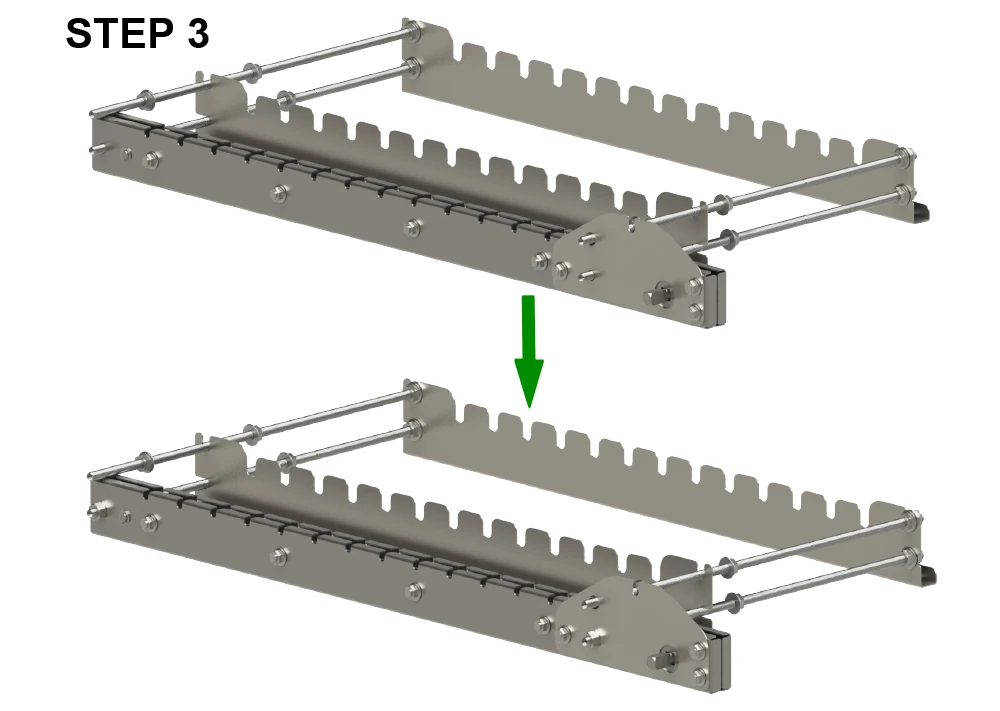

Step3

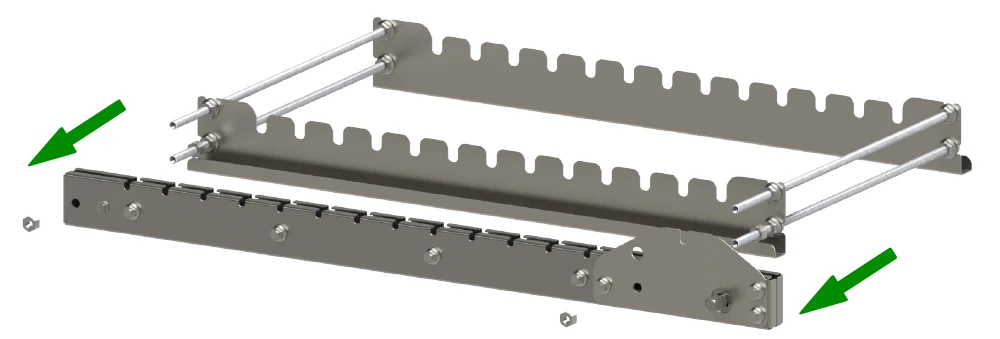

Pass the Main engine through the lower 2 Guide rods as shown in the figure;
Screw the nuts on the outer Guide rods of the Main engine, do not tighten them.

Step4
Use a skewer to test the assembly, and adjust the Skewer support frame and the Main engine to a proper position;
Tighten all nuts.

Step5
Install the DC motor, Refer to motor installation instructions;
Put on the skewers..

MOTOR WITHOUT BATTERY

The motor does not have a battery, you need to bring your own power bank or mobile phone charger for power supply. For the LED multi-function motor, you can also bring your own 3pcs AAA batteries (rechargeable batteries are not allowed) for power supply.

Because the motor is generally used in a high temperature environment, the built-in lithium battery is prone to explosion hazard.

About Power Bank

NOTE: Many power banks on the market have over-current protection functions. When the motor is used, the current passing through increases as the load increases. Once the allowable current is exceeded, the power bank will automatically cut off the power, which will cause the motor to stop, which is not the quality of the motor.
